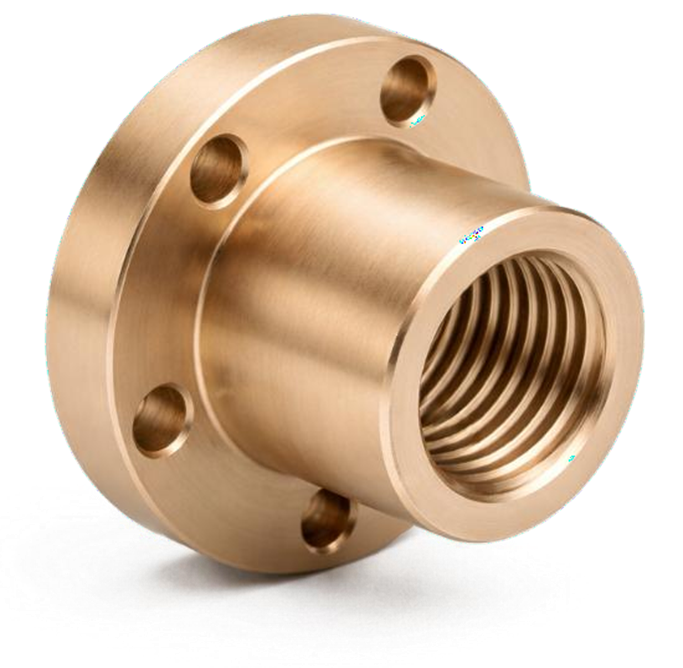

LANGED ROUND NUT – RNRF


Standard Materials:

  • Bronze

  • Cast iron

Other materials available upon request, including brass and steel.

Code d Pitch D1 D2 D3 D4 Mounting holes L1 L1
h9 -0.2/-0.3 D5 Thread
RNRF/S: with single-start thread
RNRF/S-10x2 10 2 25 42 34 25 5 M4 25 10
RNRF/S-10x3 10 3 25 42 34 25 5 M4 25 10
RNRF/S-12x3 12 3 28 48 38 28 6 M5 35 12
RNRF/S-14x3 14 3 28 48 38 28 6 M5 35 12
RNRF/S-16x4 16 4 28 48 38 28 6 M5 35 12
RNRF/S-18x4 18 4 28 48 38 28 6 M5 35 12
RNRF/S-20x4 20 4 32 55 45 32 7 M6 44 12
RNRF/S-22x5 22 5 32 55 45 32 7 M6 44 12
RNRF/S-24x5 24 5 32 55 45 32 7 M6 44 12
RNRF/S-26x5 26 5 38 62 50 38 7 M6 46 14
RNRF/S-28x5 28 5 38 62 50 38 7 M6 46 14
RNRF/S-30x6 30 6 38 62 50 38 7 M6 46 14
RNRF/S-32x6 32 6 45 70 58 45 7 M6 54 16
RNRF/S-36x6 36 6 45 70 58 45 7 M6 54 16
RNRF/S-40x7 40 7 63 95 78 63 9 M8 66 16
RNRF/S-44x7 44 7 63 95 78 63 9 M8 66 16
RNRF/S-48x8 48 8 72 110 90 72 11 M10 75 18
RNRF/S-50x8 50 8 72 110 90 72 11 M10 75 18
RNRF/S-60x9 60 9 88 130 110 88 13 M12 90 20
RNRF/S-70x10 70 10 95 140 120 95 13 M12 105 22
RNRF/D: with double-start thread.
RNRF/D-12x6 12 3 28 48 38 28 6 M5 35 12
RNRF/D-14x6 14 3 28 48 38 28 6 M5 35 12
RNRF/D-16x6 16 3 28 48 38 28 6 M5 35 12
RNRF/D-18x8 18 4 28 48 38 28 6 M5 35 12
RNRF/D-20x8 20 4 32 55 45 32 7 M6 44 12
RNRF/D-22x10 22 5 32 55 45 32 7 M6 44 12
RNRF/D-24x10 24 5 32 55 45 32 7 M6 44 12
RNRF/D-28x10 28 5 38 62 50 38 7 M6 46 14
RNRF/D-30x12 30 6 38 62 50 38 7 M6 46 14
RNRF/D-32x12 32 6 45 70 58 45 7 M6 54 16
RNRF/D-40x14 36 6 45 70 58 45 9 M8 54 16
