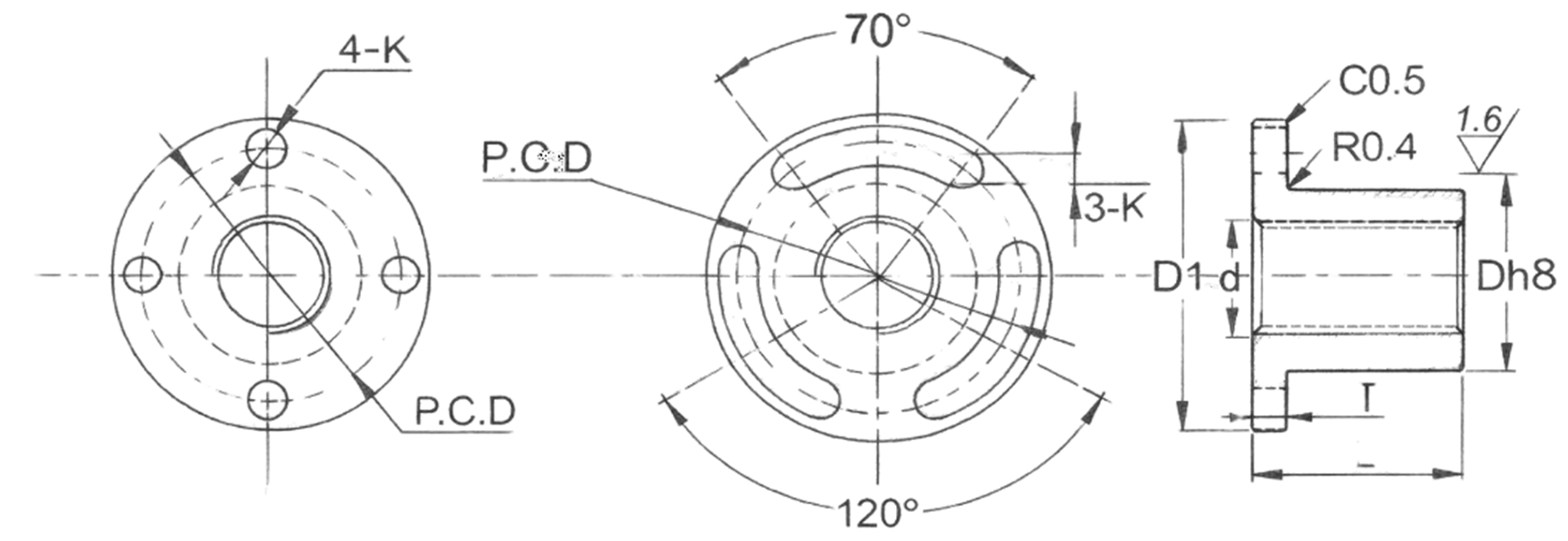

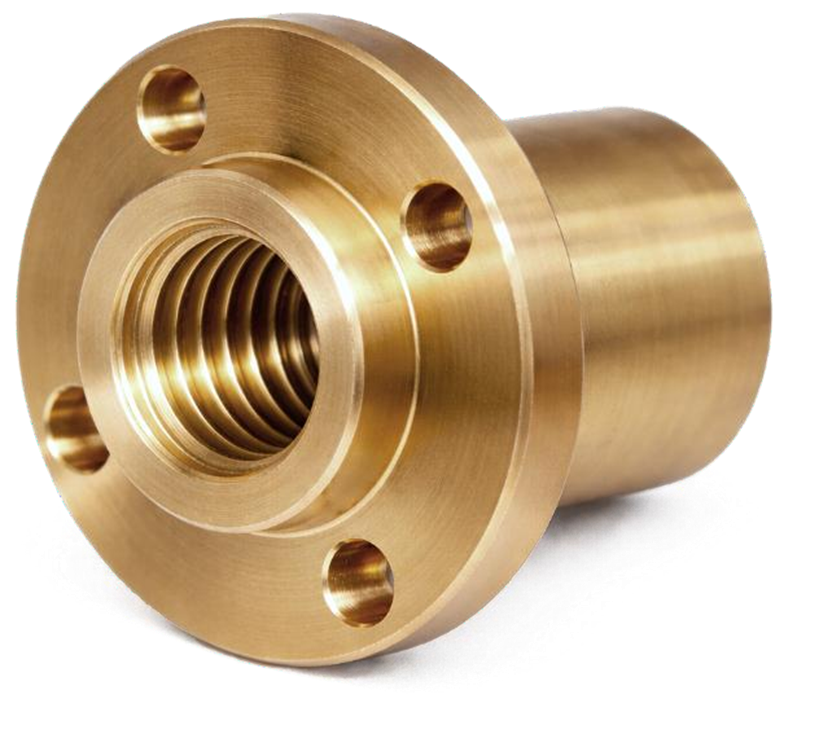

ROUND NUT WITH BACK FLANGE OR SPECIAL MOUNTING – RNRFX
Standard Materials:
Bronze
Cast iron
Other materials available upon request, including brass and steel.
| Code | d | pitch | D | L | D1 | T | S | P.C.D | K | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | K,Y | A | K,Y | A | K,Y | |||||||
| RNRFX□-14x□ | 14 | 3 (2, 4, 6, 8, 9) |
22 | 20 | 44 | 44 | 5 | 5 | 33 | 31 | 5.4 | M4 |
| RNRFX□-16x□ | 16 | 28 | 35 | 52 | 51 | 6 | 6 | 40 | 38 | 6.6 | M5 | |
| RNRFX□-20x□ | 20 | 4 | 32 | 40 | 56 | 56 | 6 | 6 | 44 | 42 | 6.6 | M5 |
| RNRFX□-22x□ | 22 | 5 (2, 3, 4, 6) |
36 | 50 | 60 | 61 | 7 | 6 | 48 | 47 | 6.6 | M5 |
| RNRFX□-24x□ | 24 | 36 | 50 | 60 | 61 | 7 | 6 | 48 | 47 | 6.6 | M5 | |
| RNRFX□-28x□ | 28 | 44 | 56 | / | 76 | 8 | / | / | 58 | 9.0 | M6 | |
| RNRFX□-32x□ | 32 | 6 (3, 4, 5, 7, 8) |
44 | 56 | / | 76 | 8 | / | / | 58 | 9.0 | M6 |
