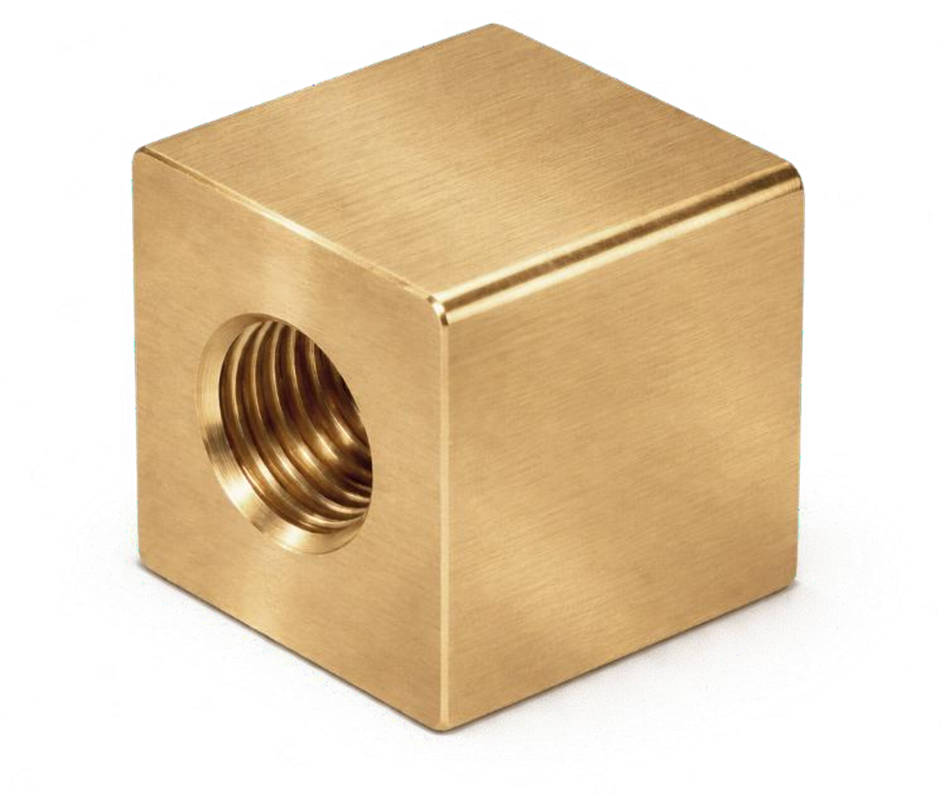

SQUARE LEAD SCREW NUT– HXN
Standard Materials:
Bronze
Cast iron
Other materials available upon request, including brass and steel.
| Code | d | Pitch | Q | C | Weight (kg) |
|---|---|---|---|---|---|
| SQNA/S: with single-thread. | |||||
| SQN/S-10x2 | 10 | 2 | 17 | 15 | 0.027 |
| SQN/S-12x3 | 12 | 3 | 25 | 18 | 0.076 |
| SQN/S-14x3 | 14 | 3 | 25 | 20 | 0.079 |
| SQN/S-16x4 | 16 | 4 | 28 | 24 | 0.119 |
| SQN/S-18x4 | 18 | 4 | 30 | 28 | 0.154 |
| SQN/S-20x4 | 20 | 4 | 35 | 30 | 0.259 |
| SQN/S-22x5 | 22 | 5 | 35 | 33 | 0.290 |
| SQN/S-24x5 | 24 | 5 | 40 | 36 | 0.354 |
| SQN/S-26x5 | 26 | 5 | 40 | 39 | 0.363 |
| SQN/S-28x5 | 28 | 5 | 45 | 42 | 0.506 |
| SQN/S-30x6 | 30 | 6 | 45 | 45 | 0.513 |
| SQN/S-32x6 | 32 | 6 | 55 | 48 | 0.891 |
| SQN/S-36x6 | 36 | 6 | 55 | 54 | 0.752 |
| SQN/S-40x7 | 40 | 7 | 60 | 60 | 1.216 |
| SQN/S-44x7 | 44 | 7 | 65 | 66 | 1.538 |
| Code | d | Pitch | Q | C | Weight (kg) |
|---|---|---|---|---|---|
| SQNA/D: with double-thread. | |||||
| SQN/D-14x6 | 14 | 3 | 25 | 20 | 0.079 |
| SQN/D-16x8 | 16 | 4 | 28 | 24 | 0.119 |
| SQN/D-18x8 | 18 | 4 | 30 | 28 | 0.154 |
| SQN/D-20x8 | 20 | 4 | 35 | 30 | 0.259 |
| SQN/D-22x10 | 22 | 5 | 35 | 33 | 0.290 |
| SQN/D-24x10 | 24 | 5 | 40 | 36 | 0.354 |
| SQN/D-28x10 | 28 | 5 | 45 | 42 | 0.506 |
| SQN/D-30x12 | 30 | 6 | 45 | 45 | 0.513 |
| SQN/D-32x12 | 32 | 6 | 55 | 48 | 0.891 |
| SQN/D-36x12 | 36 | 6 | 55 | 54 | 0.752 |
| SQN/D-40x14 | 40 | 7 | 60 | 60 | 1.216 |
