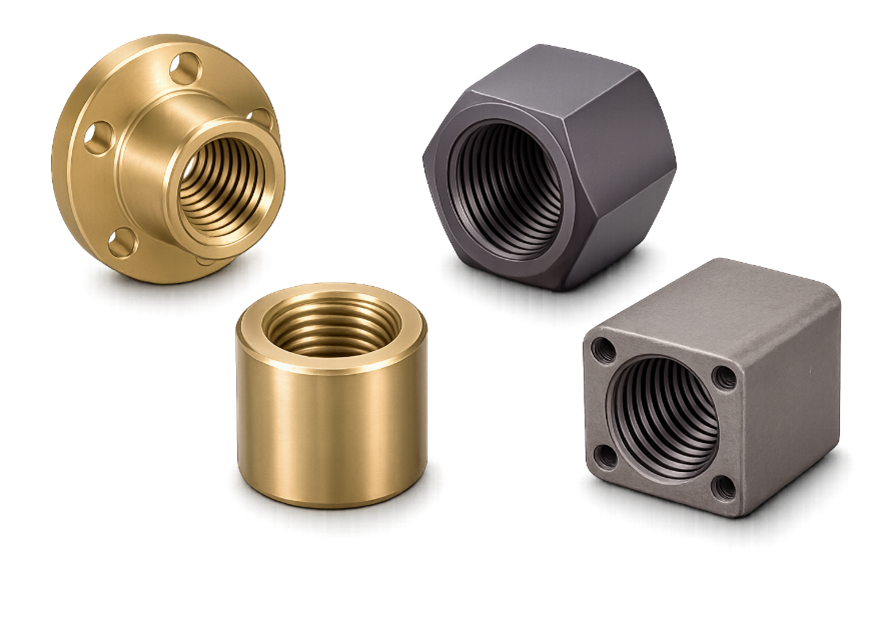

GENERAL PURPOSELEAD SCREW NUTS

Ferrous manufactures General Purpose Lead Screw Nuts for use with trapezoidal lead screws in linear drive and positioning systems across a wide range of industrial equipment.

These nuts are produced as standard or custom components according to customer drawings or samples and are suitable for trapezoidal, STT, Acme, and other standard or custom thread profiles where anti-backlash or wear compensation is not required.

General Purpose Lead Screw Nuts are intended for applications where moderate axial clearance is acceptable, with a typical clearance range of 0.075 mm to 0.18 mm. For best performance, replacement of the screw and nut assembly is recommended once axial clearance approaches approximately one-quarter of the thread pitch.

Materials

Common materials include:

• Bronze

• Brass

• Cast iron

• Alloy steel

• POM (Delrin / Acetal)

• PA6 / PA66 (Nylon)

• Other engineering plastics available upon request

Material selection depends on load, speed, operating conditions, and lubrication requirements.

Standards & Tolerances Manufactured in accordance with:

• ISO 2901–2904

• DIN 103

Standard tolerance class: 7H, with higher precision tolerances available upon request.

Operating Temperature Range Typical operating limits:

• Metal nuts: 15°C to 350°C

• Plastic nuts: 15°C to 175°C

Actual allowable temperatures depend on load conditions, duty cycle, and lubrication.

All products are produced under strict quality control to ensure reliable performance.
