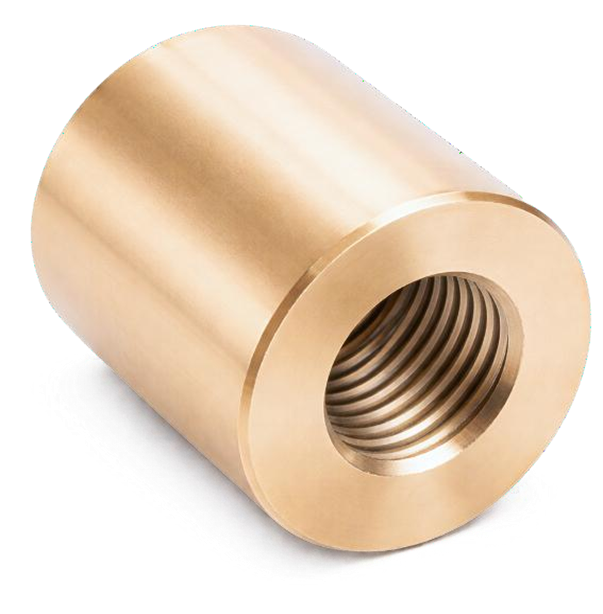

ROUND NUT (NO FLANGE) – RN
Standard Materials:
Bronze
Cast iron
Other materials available upon request,
including brass and steel.

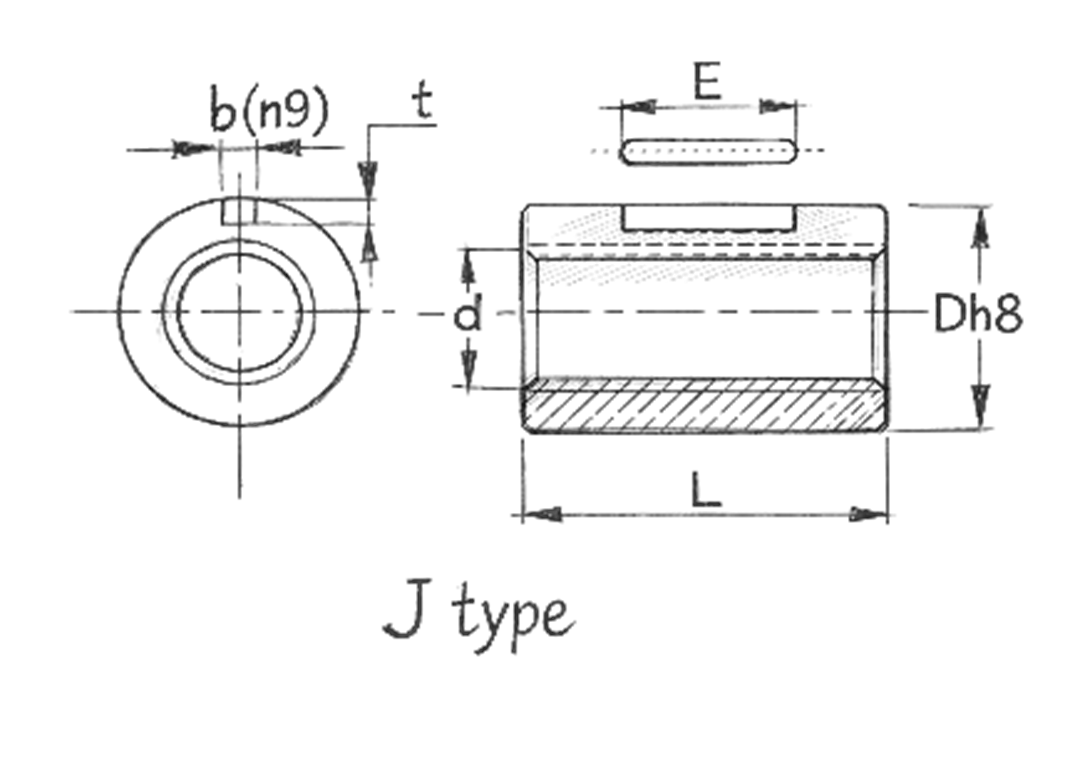

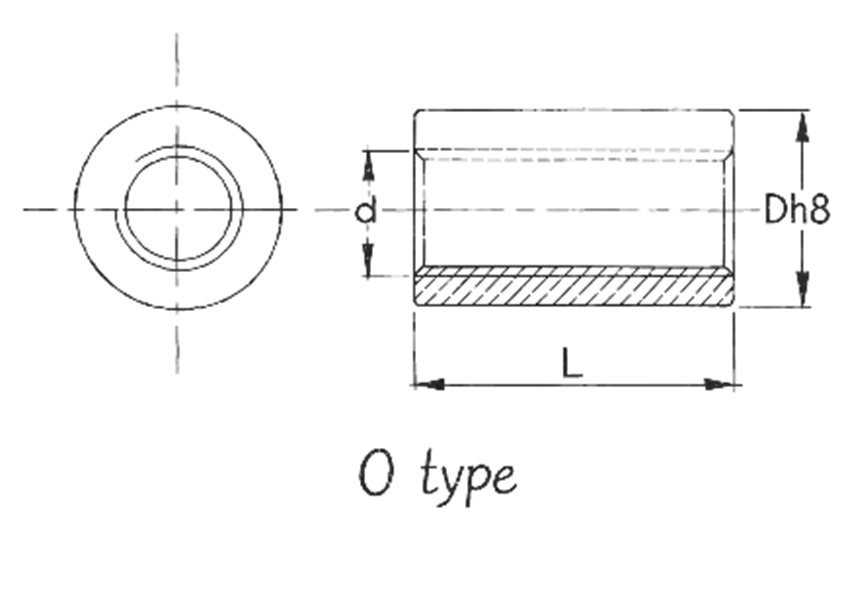

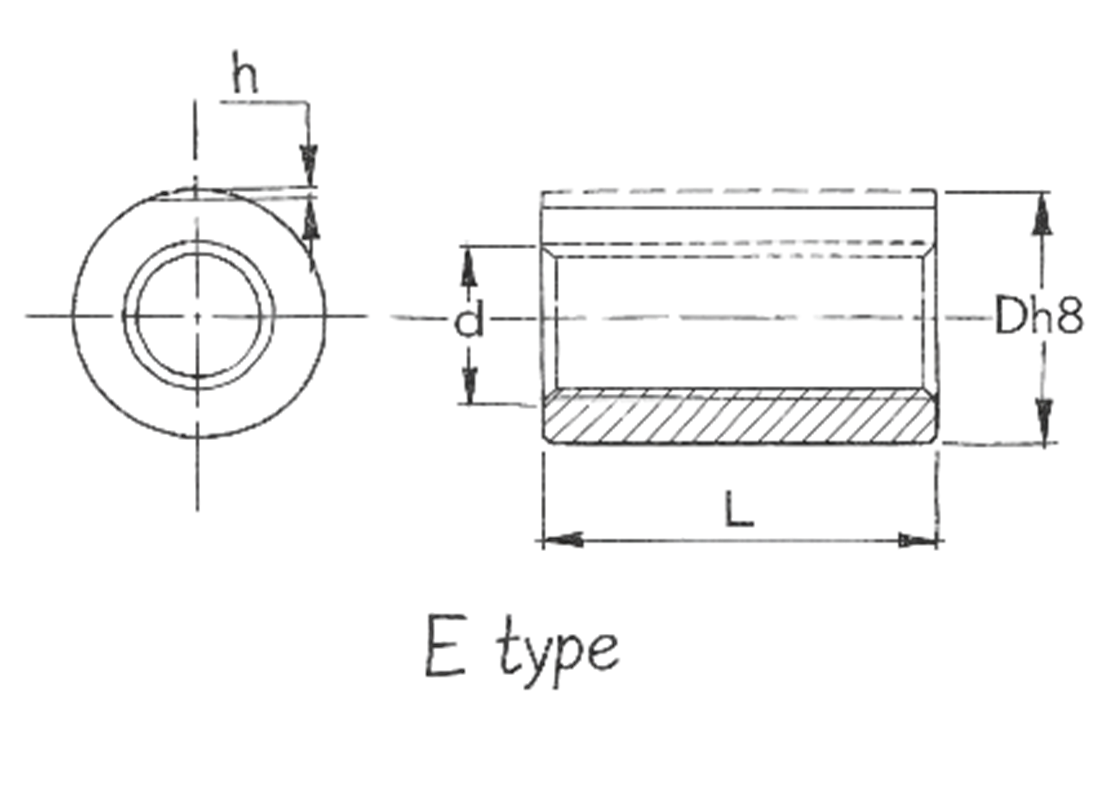

| Code | d | pitch | D | L | b | t | E | h | Dynamic Load (KN) |
|---|---|---|---|---|---|---|---|---|---|
| RN-8x1.5 | 8 | 1.5 | 15 | 20 | 3 | 1.8 | 14 | / | 1.47 |
| RN-10x2 | 10 | 2 | 20 | 20 | 4 | 2.5 | 14 | / | 2.06 |
| RN-12x2 | 12 | 2 | 22 | 22 | 4 | 3 | 16 | / | 2.84 |
| RN-14x3 | 14 | 3 | 22 | 22 | 4 | 5 | 29 | 1 | 3.63 |
| RN-16x3 | 16 | 3 | 28 | 26 | 5 | 3 | 18 | 1 | 4.90 |
| RN-18x4 | 18 | 4 | 32 | 31 | 6 | 3.5 | 22 | / | 6.86 |
| RN-20x4 | 20 | 4 | 32 | 31 | 6 | 3.5 | 22 | 2 | 7.65 |
| RN-22x4 | 22 | 5 | 36 | 40 | 6 | 3.5 | 26 | 2 | 9.90 |
| RN-25x5 | 25 | 5 | 36 | 40 | 6 | 3.5 | 26 | 2 | 11.38 |
| RN-28x5 | 22 | 5 | 44 | 45 | 8 | 4 | 32 | 2 | 14.42 |
| RN-32x6 | 32 | 6 | 44 | 45 | 8 | 4 | 32 | 2 | 17.06 |
| RN-36x5 | 22 | 6 | 52 | 49 | 12 | 5 | 40 | - | 21.18 |
| RN-40x5 | 22 | 7 | 58 | 57 | 15 | 5 | 42 | 27.46 | |
| RN-50x5 | 22 | 8 | 68 | 67 | 15 | 5 | 52 | 40.11 |
