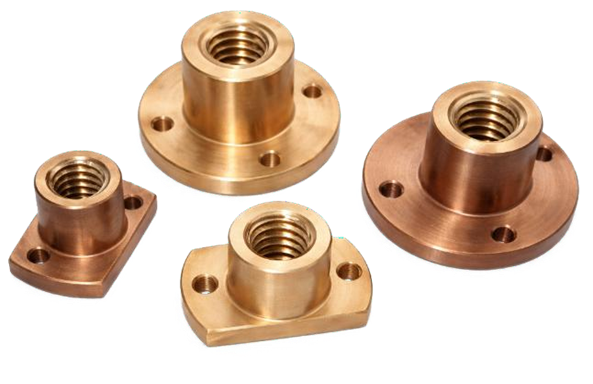

ROUND NUT WITH ROUND FLANGE – COMPACT TYPE (RNC)
The RNC Compact Round Nut with Round Flange is designed for applications where installation space is limited while maintaining reliable load transmission and secure mounting. The compact flange design allows easy fastening while keeping overall dimensions minimal.
Manufactured for use with trapezoidal lead screws, these nuts provide dependable performance in positioning and drive systems across a wide range of industrial applications.
Ferrous manufactures standard sizes as well as custom sizes according to customer drawings or application requirements.
Standard Materials
Bronze
Cast iron
Optional Materials (on request)
Brass
Steel
Other materials available upon request

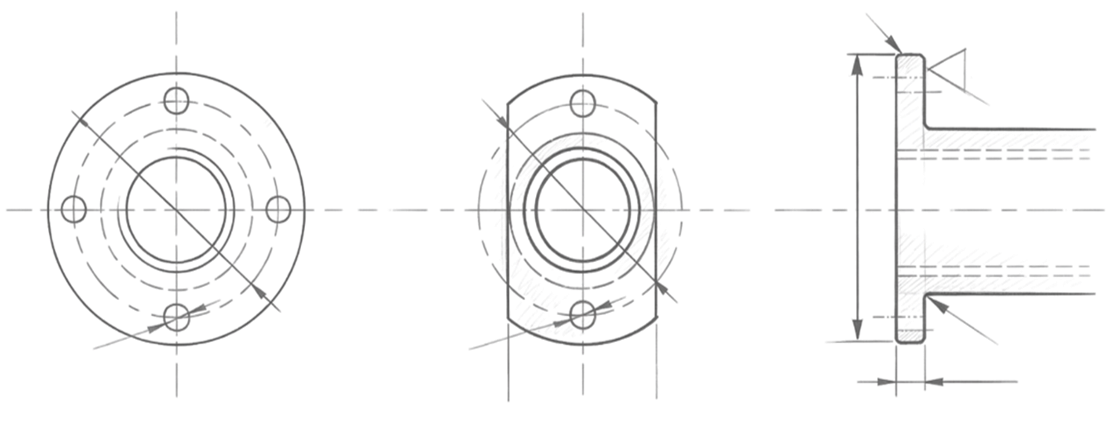

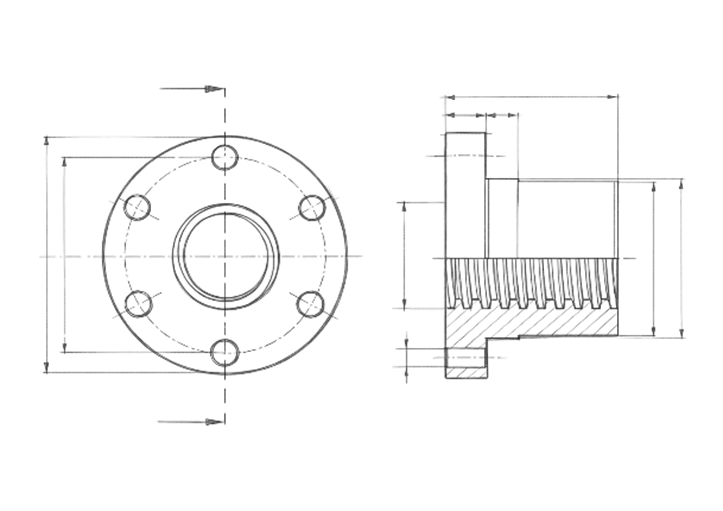

| Code | d | pitch | D | L | D1 | T | P.C.D | W | Dynamic Load (KN) |
|---|---|---|---|---|---|---|---|---|---|
| RNC-10x | 10 | 2 (3, 4, 5, 6, 8, 9) | 16 | 19 | 32 | 4 | 24 | 3.3 | 2.02 |
| RNC-12x | 12 | 18 | 24 | 36 | 5 | 27 | 4.3 | 3.14 | |
| RNC-14x | 14 | 3 (2, 4, 6, 8, 9) | 20 | 24 | 38 | 5 | 29 | 4.3 | 3.92 |
| RNC-16x | 16 | 22 | 28 | 40 | 5 | 31 | 4.3 | 5.34 | |
| RNC-20x | 20 | 4 (2, 3, 5, 6) | 26 | 32 | 44 | 5 | 35 | 4.3 | 7.85 |
| RNC-22x | 22 | 5 (2, 3, 4, 6) | 28 | 40 | 50 | 6 | 39 | 5.4 | 9.89 |
| RNC-25x | 25 | 31 | 40 | 53 | 6 | 42 | 5.4 | 11.38 | |
| RNC-28x | 28 | 34 | 43 | 58 | 7 | 46 | 6.6 | 14.42 | |
| RNC-32x | 32 | 6 (3, 4, 5, 7, 8) | 38 | 43 | 62 | 7 | 50 | 6.6 | 16.94 |
